WHAT IS EXALTO?

Exalto offers a premium all-weather wiper system built for the harshest environments that are made of high-quality materials. With their wide range of high-performance motors, innovative arms, durable blades, controls, and washing systems, Exalto manufactures systems for all kinds of vessels in the commercial and recreational market.  Exalto wipers have stainless steel shafts and fixings. The drive shafts run in self-lubricating brass bearings to ensure many hours of trouble-free performance. The wipers feature two speeds, self-parking, and offer in combination with one of our many control systems intermittent speeds, smart wipe/wash function, and synchronized wiping with certain controls.

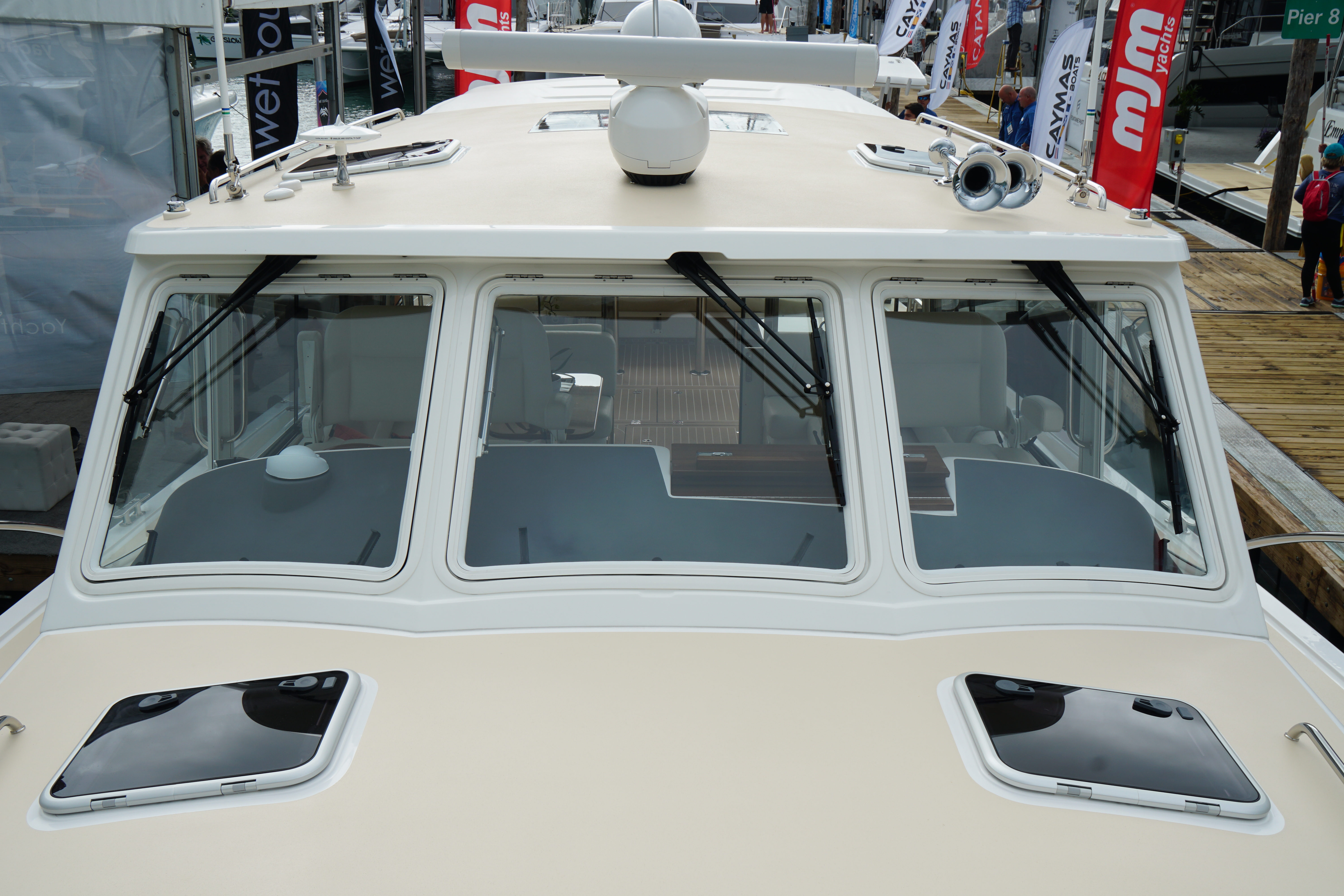

223 SERIES (TYPE 1)

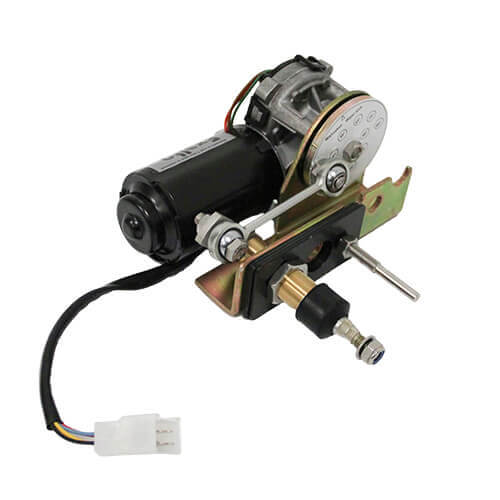

For windows up to 46.9” (1190mm) in height, Exalto’s self-parking 223 series wipers for bulkhead mounting is available in 12V and 24V and for several bulkhead thicknesses. With a torque of 23 Nm, these wipers can drive arms up to 31.1” (790mm) in length in combination with blades up to 31.9” (800mm)in length. The 223 system is available as a pantograph and pendulum wiper system. For these wipers, a cover in black or white is available to protect the motor and keep all moving parts out of reach.



The Exalto 223 series arms are suitable for all 223 wiper systems for small and medium-sized windows up to 46.9” (1190mm) in height.  All 223 arms have a fold-back feature, so they can be placed in a fixed position away from the windshield. This makes it easier to mount the arms, replace the blades or to clean the window. As a standard, these arms also have adjustable spring pressure to regulate the pressure of the blade on the window stepless. The position of the blade in relation to the window configuration can be adjusted by the swiveling blade clip. All Exalto wiper arms are made of stainless steel 316 and have bronze heads. A black coating is applied to all metal parts as a standard to prevent reflection. The polished arms are new, so you can choose which arm suits the look of your vessel most. The wiper arms are adjustable in length.

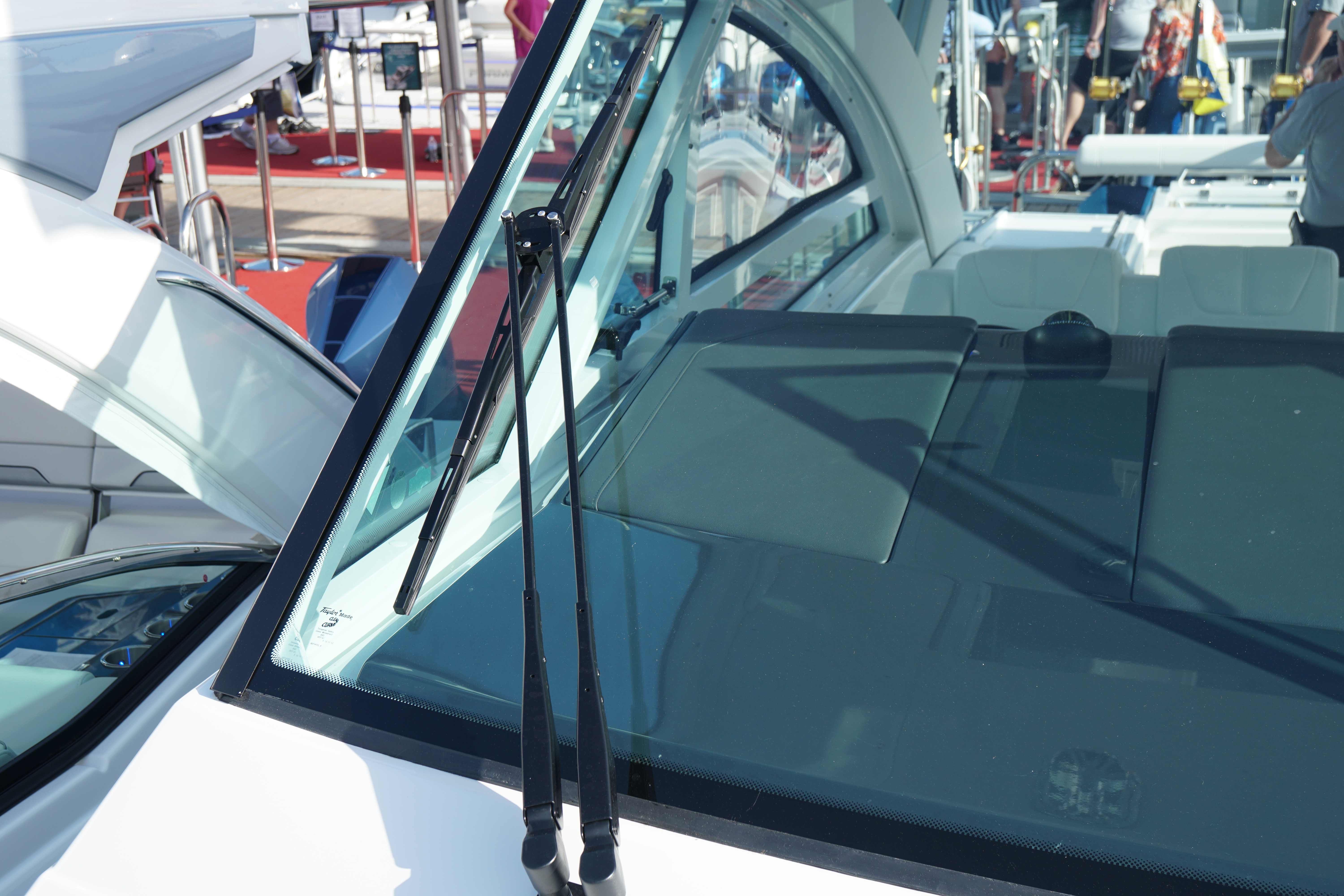

255 SERIES (TYPE 2)

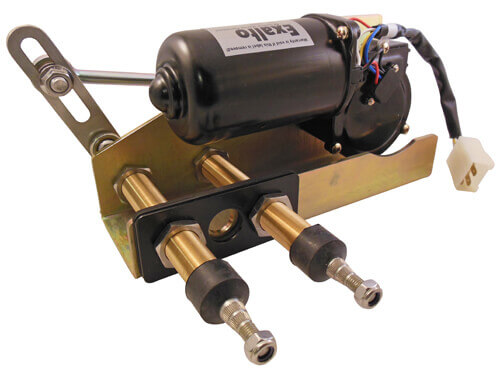

For windows up to 65" (1650mm) in height, Exalto’s self-parking 255 series wiper motor for bulkhead mounting. The 255BS is a powerful wiper with dual driven shafts available in 12v or 24v and for several bulkhead thicknesses. With a torque of 55 Nm, this wiper can drive arms up to 39.4” (1000mm) in length and blades up to 47.24 (1200mm) in length. This motor has insulated earth return as a standard. The wiping angle of this wiper motor is stepless from 40° to 90°.



The 255 series arms are specially designed for wiper motor 255BS. These Exalto arms are available for standard and HD blades up to 31.9” (800mm) in length, or for HD blades from 33.4” (850mm) to 47.4” (1200mm) in length. The arm is manufactured from stainless steel 316 and has brass, seawater resistant heads. The 255 series arms have two fixed springs as a standard. If you want to adjust the pressure on the glass yourself, “AS” (adjustable spring) arms with two stepless adjustable springs are also available. These arms have a swiveling blade clip, to adjust the position of the blade in relation to the window configuration easily. The arm has a black coating to prevent reflection as a standard. However, these arms with fixed springs are also available in high polished stainless steel. These arms with fixed springs can be folded back. This makes it easier to mount the arms, change the blades, or clean the window. Note: the “SAS and BAS” arms with adjustable springs do not have this fold-back feature.

240 SERIES (TYPE 1.5)

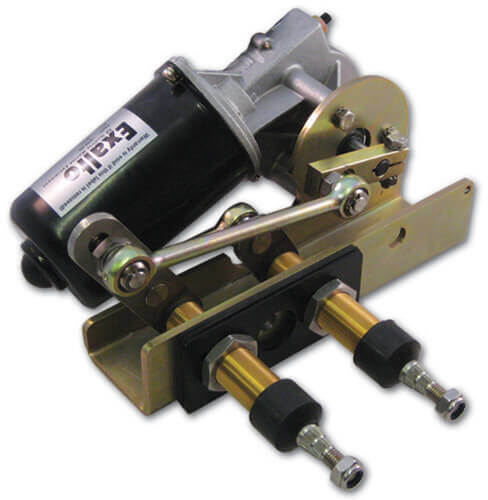

For windows up to 62.9" (1600mm) in height, Exalto’s self-parking 240 series wiper motor for bulkhead mounting. The 240BS is a powerful wiper with dual driven shafts available in 12v or 24v and for several bulkhead thicknesses. With a torque of 40Nm, this wiper can drive arms up to 35.4” (900mm) in length and blades up to 35.4 (900mm) in length. This motor has insulated earth return as a standard. The wiping angle of the 240 series wiper motor is stepless from 40° - 90°.  The 240 series is an ideal wiper where fixed arms desired for ease of installation.



The 240 series arms are specially designed for wiper motor 240BS. Exalto arms are available for standard blades to 31.4” (800mm) in length, or for Heavy-Duty blades to 35.4” (900mm) in length. The arm is manufactured from stainless steel 316 and has brass, seawater resistant heads. The 240 series arms are fixed length and fixed spring pressure as a standard. These arm as standard has a swiveling blade clip to allow easy adjustment of the position of the blade in relation to the window configuration. The arm has a black coating to prevent reflection as a standard. However, these arms with fixed springs are also available in high polished stainless steel. The 240 series arms with fixed springs can be folded back, which allows it easier to mount the arms, change the blades or clean the window.



285 SERIES (TYPE 3)

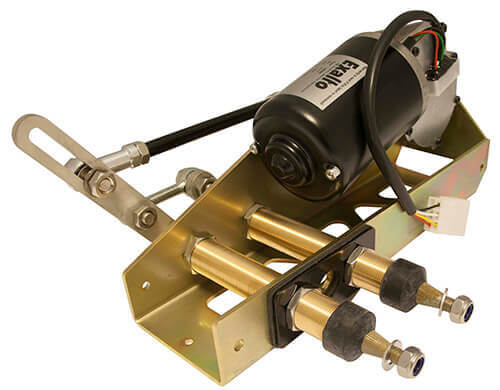

For windows up to 88.5" (2250mm) in height, Exalto’s self-parking 285 series wiper motor for bulkhead mounting. The 285BS is a powerful wiper with dual driven shafts available in 24v and is standard with a 1” bulkhead thickness (custom bulkhead thicknesses are available). With a torque of 85 Nm, this wiper can drive arms up to 59” (1500mm) in length and blades up to 59” (1500mm) in length (maximum arm/blade combination cannot exceed 82.6” (2100 mm). This motor has insulated earth return as a standard. The wiping angle of this wiper motor is stepless from 40° to 90°.



The 285 series arms are specially designed for the powerful 285BS and 2110BS wipers. The Exalto 285 series arm is manufactured to the required length of the project. Please, note that therefore they have a longer delivery time. The 285 series is a fixed length, non-adjustable arm. The 285 series arm is made of stainless steel 316 and has seawater resistant brass heads. A black coating is applied as a standard to prevent reflection. The Exalto 285 series arms have two adjustable springs, to adjust the pressure on the glass stepless. By means of the swiveling blade clip, you can park your blades parallel to the window. We advise you to use the Exalto Heavy Duty blades in combination with this arm.

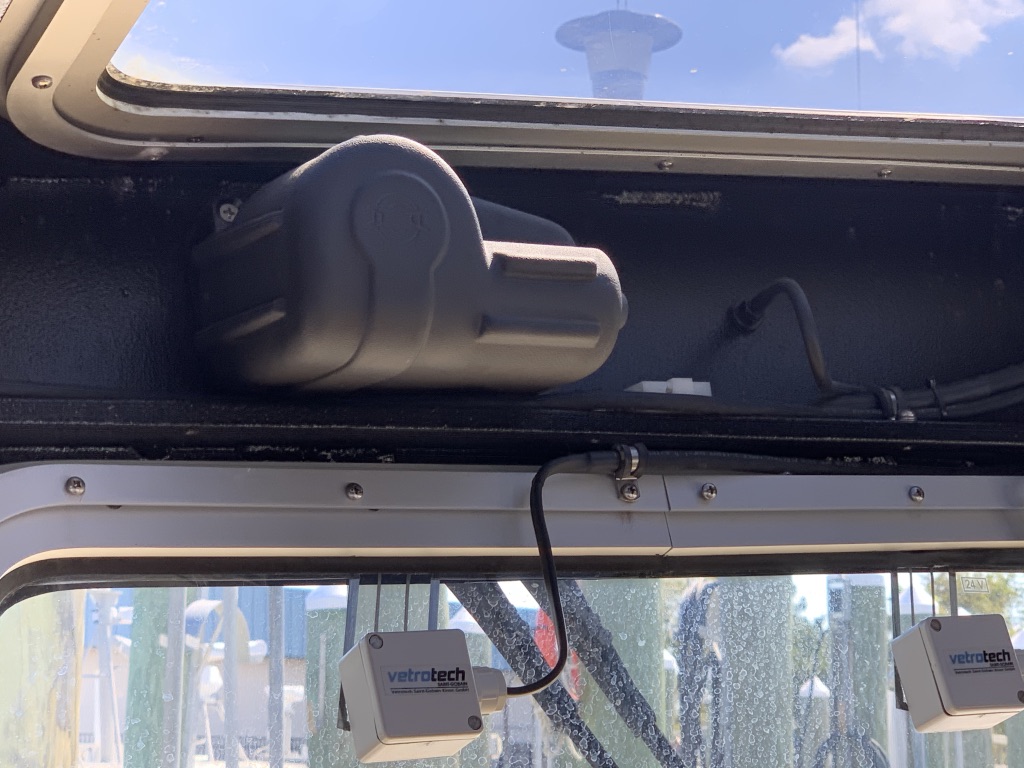

EXTERNAL SERIES (XBD)

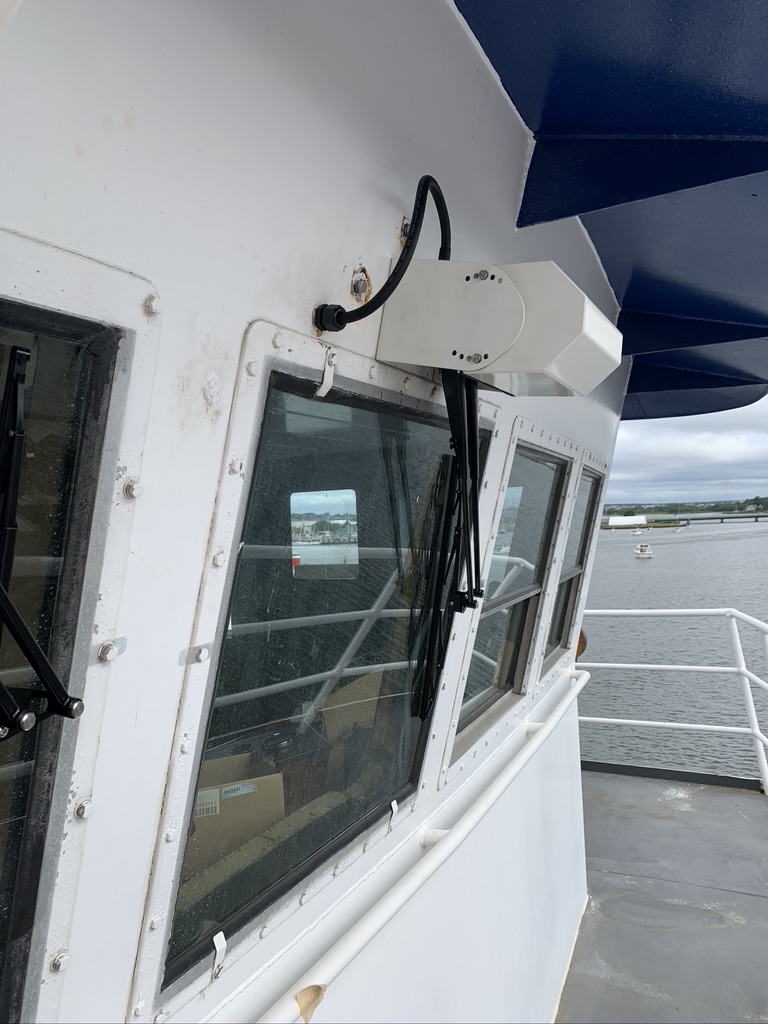

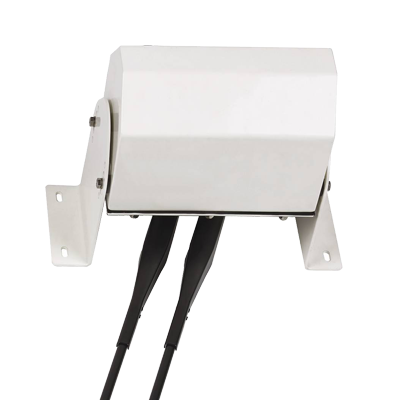

The Exalto External Wiper Housing is ideally suited for installations where internally installation-space is not sufficient and offers unmatched mounting flexibility and installation ease. The systems' easily adjustable sweep angles, wiper arm lengths and spring pressure make the Exalto External Wiper Housing easy to configure and install for a wide variety of window configurations. Please note that you will need the specially designed arms EX2133.R, EX2136.R or EX2139.R for this installation. Also, a premade harness (EX223XBD) is necessary to make a waterproof connection.  Using Exalto 223 series wiper inside the house, the Exalto XBD, this system is for windows up to 46.9” (1190mm) in height.  Available in 12V and 24V, the XBD wiper can drive arms up to 31.1” (790mm) in length in combination with blades up to 31.9” (800mm)in length.



All Exalto wiper blades are manufactured of stainless steel 316. To prevent reflection, a black coating is applied to all metal parts. The Heavy-Duty blades have a lower profile than the standard blades and a reduced lift. This makes them perfect for applications where a little more pressure is required. The Heavy-Duty blades are also more screen-friendly due to the use of plastic lower bridges. In the case of a damaged rubber, these plastic bridges will not damage the screen. The Exalto HD blades are also available in a polished version. So, you can choose the look that fits your vessel. Keep in mind that every motor has a maximum blade length when choosing your wiper blade.



Visit the Exalto website here.
