IL0517
Price:$93.00 EachIn Stock (42)
F-70 HD LED without switch, 10-30VDC, 5W Surface Mount Utility Light, IP67

  • Overview
  • Features
  • Specifications

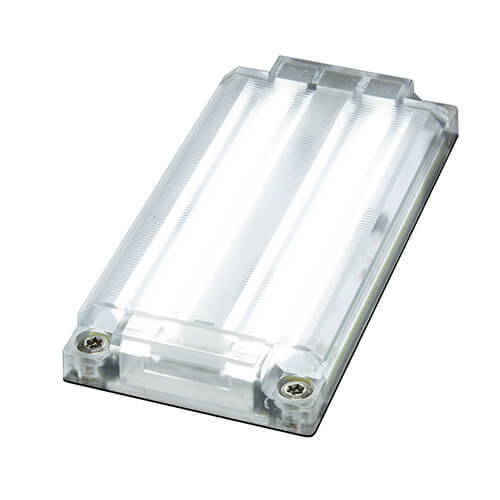

The F-70 Heavy Duty LED Utility Light is an extremely efficient, super high output, compact surface-mounted fixture designed for environments prone to extreme water exposure, temperature extremes,  and high shock loads/vibration.  Its integrated driver and rear or side-entry cabling provide ease and flexibility for mounting.  This model features an illuminated waterproof magnetic slide switch that can be easily located in the dark. If dimming is also desired, this can be done using the DMS-500 or DMS-850 dimmer and a remote momentary push button switch. We believe our customers will find many uses for such a versatile and compact fixture.
  • Completely impervious to water intrusion
  • Impact-proof, UV stabilized PC construction
  • Specially designed waterproof magnetic slide switch
  • Convenient surface-mount design
  • Glare-free high precision optics
  • Dimmable using DMS-500/850 dimmers
  • Extra long 3m marine grade duplex cable
  • Stainless steel mounting screws provided
  • Certified Ignition Protected – safe for gasoline engine compartments




NameDescription
Housing Finish/MaterialPolycarbonate HT/Transparent
Certifications & ComplianceCE-EMC/EMV, ROHS, Ignition protection certified to USCG/ISO/SAE/NMMA standards
Integrated SwitchNo
Output ColorCool White
Lifetime Hours50,000 hrs
ClassClass III
Dimmer CompatibilityDMS-500/850 LED Dimmers
Dimmer Control InterfaceRemote Momentary Push Button
Halogen Equivalency40W
Input Voltage10-30VDC
Pricing Unitsea
Dimensions4.72" (120mm) x 2.36" (60mm) x 0.59" (15mm)
Warranty2 Years
Power Consumption5.0W
Lens MaterialPolycarbonate HT
Base Dimensions4.72" (120mm) x 2.36" (60mm)
Ingress ProtectionIP67
Mounting MethodScrew-mount (ss fasteners included)
Max Operating Temperature60°C
Dimming Range5-100%
Beam Angle60-90°
Luminous Flux400 lm
DriverIntegrated multi-voltage, current controlled
Install LocationWet or dry, bulkhead or ceiling
Electrical ProtectionsReverse Polarity, Transients, EMI
Correlated Color Temperature (CCT)5700K
Color Rendering Index (CRI)75
Ingress Protection Rating (IP)IP65+
