Imtra’s Zipwake Product Manager Jamie Simmons explains the key differences between trim tabs and interceptors.
If you’ve ever owned or operated a powerboat, you’re likely familiar with trim tabs, used to lift the transom of the boat up, and push the bow down to help the boat plane and ride comfortably. However, in the last 10 years or so, manufacturers like Zipwake, Humphree, and Volvo QL, among others, have introduced interceptors to help better control the trim and roll of powerboats. Both systems have their advantages and disadvantages, so which one is best for your boat? Let’s dive deeper into trim tabs and interceptors.
Key Takeaways
- Trim tabs and interceptors both improve boat performance by adjusting running attitude, but they operate differently - trim tabs use angled plates while interceptors deploy vertical blades.
- Electric trim tabs offer maintenance advantages over hydraulic systems, but Zipwake interceptors provide faster response times (1.5 seconds vs. 6-8 seconds) and finer adjustment control.
- Hull design significantly impacts which system works best - slower vessels (under 10 mph) benefit from trim tabs' larger surface area, while planing boats see better performance with interceptors.
- While interceptor systems typically cost more initially, their environmental benefits, reduced maintenance, and positive impact on resale value often make them the more cost-effective choice long-term.
800x250_1.jpg)
What is a Trim Tab?
Trim tabs are adjustable plates mounted on the transom (rear) of a boat, typically installed in pairs with one on each side of the outboard or outdrive. These plates extend into the water flow behind the boat and can be angled downward to create lift at the stern. When deployed, trim tabs redirect water flow, pushing the stern upward and consequently lowering the bow. This adjustment helps correct listing (leaning to one side), improves visibility by lowering a raised bow, reduces planing time, and enhances overall fuel efficiency.
Traditional trim tabs come in two main varieties: hydraulic and electric. Hydraulic systems use a pump and fluid-filled cylinders to move the tabs, while electric versions employ actuators to achieve the same motion. Most trim tabs are controlled by the captain using a panel at the helm, allowing for independent adjustment of port and starboard tabs to fine-tune the boat's running attitude. While trim tabs have been the industry standard for decades, they require more space on the transom and create more drag than newer interceptor systems, which is why many boaters are now considering alternatives like Zipwake interceptors for improved performance.
Electric Trim Tabs vs. Hydraulic Trim Tabs
Electric trim tabs use electric actuators to move the tabs up and down, while hydraulic trim tabs use a pump and fluid-filled cylinders to create movement. The key differences are that electric systems are generally faster, cleaner to install, and maintenance-free, with no hydraulic fluid to leak or maintain. Hydraulic systems, however, typically provide more power for larger vessels and have traditionally been considered more durable in harsh marine environments.
Electric trim tabs offer simpler wiring with no hydraulic lines to run, making installation more straightforward and eliminating the risk of fluid leaks. They also tend to draw less power from your boat's electrical system during operation. Hydraulic systems, while requiring more components and maintenance, can deliver more consistent performance under heavy loads and are often preferred for larger vessels, where the additional power is beneficial.
Both systems accomplish the same fundamental goal of adjusting your boat's running attitude, but the choice between them typically comes down to your specific boat size, budget, and whether you prefer simplicity or power in your trim control system.
What is an Interceptor?
In the world of boats, an interceptor is usually a small vertical plate that’s set on the bottom edge of the boat’s stern or transom. The plate creates additional lifting pressure beneath the boat, and in the case of mechanical interceptors, the plate can be extended or retracted as needed to increase or reduce the amount of lift.
What Do Trim Tabs and Interceptors Have in Common?
Boat trim is the fore-and-aft attitude of the hull of a boat at different speeds. A primary purpose of trim tabs and interceptors is to modify the trim, or the water flow past the boat so the hull adopts the best attitude for speed and ride. Simply put, both interceptors and trim tabs aim to lift the transom and lower the bow while underway for a smoother, faster, and more fuel-efficient ride.
The Environmental Impact: Trim Tabs vs. Interceptors
When comparing trim tabs and interceptors, the environmental impact is often overlooked. Traditional hydraulic trim tab systems require oil for operation, creating potential for leaks and contamination in our waterways. The larger surface area of trim tabs also creates more drag, resulting in higher fuel consumption over your boat's lifetime. Zipwake's electric interceptor systems eliminate hydraulic fluid entirely, and their streamlined profile can decrease your boat's fuel consumption and carbon emissions. For boaters who care about minimizing their environmental footprint while still maximizing performance, interceptors offer a clear advantage that goes beyond just handling improvements.
DIY Maintenance Comparison: What Boat Owners Need to Know
Traditional trim tabs typically demand more frequent attention - hydraulic systems need fluid checks, cylinders eventually require rebuilding, and the exposed hinges and moving parts are prone to corrosion that needs regular treatment. Zipwake interceptors have fewer moving parts and use sealed electric actuators, which greatly reduce maintenance requirements. For boat owners who prefer spending weekends on the water rather than working on their vessels, interceptors provide a welcome reduction in maintenance requirements without sacrificing performance.
Trim Control Technology for Different Hull Designs
Not all boats respond the same way to trim control systems. Deep-V hulls, catamarans, pontoons, and flat-bottom boats each present unique trim challenges. Zipwake's programmable control systems can be optimized for specific hull designs, offering customized performance that traditional one-size-fits-all trim tabs cannot match. For example, catamarans benefit from the precise independent control that interceptors provide, while deep-V hulls can achieve better running attitudes with the rapid adjustments interceptors offer. If you're considering a trim control system, your specific hull design should factor heavily into your decision-making process.
Resale Value Considerations: How Trim Systems Impact Boat Value
Modern boat buyers recognize the value of advanced systems like Zipwake interceptors. Vessels equipped with these systems often command premium resale prices compared to those with conventional trim tabs or no trim control at all. While the initial investment in a Zipwake system is higher than traditional trim tabs, many boat owners find that this cost is recovered not just through improved performance and fuel savings, but also through stronger resale value when it's time to upgrade to a new vessel. If you're planning to sell your boat in the next few years, the added value of a modern interceptor system is worth considering.
Trim Control Integration with Modern Marine Electronics
Unlike most traditional trim tab systems, Zipwake interceptors can integrate with NMEA 2000 networks, allowing communication with other onboard systems. This enables features like GPS-based automatic trim adjustment for changing conditions and integration with multifunction displays. If you've invested in modern electronics for your boat, Zipwake's ability to connect with these systems represents a significant advantage over isolated trim tab systems. This connectivity aligns with the broader trend toward fully integrated vessel management and provides a more seamless boating experience than what's possible with conventional trim tabs.
Trim Tabs vs. Interceptors: What are the Advantages & Disadvantages?
Trim tabs are a common device attached to the transom or within a transom pocket, usually in pairs, that can lift the transom and lower the bow under way by pressing down at an angle into the water flowing past the transom. The sharper the angle, the greater the effect of the trim tab.

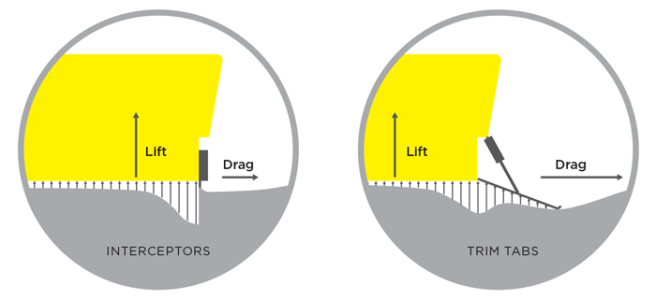

Interceptors are mounted on the lowest surface of the transom, and like trim tabs, interceptors redirect the water flow to change the attitude of transom and bow. Where they differ is that interceptors enter the flow at approximately a right angle, or vertically. Also, interceptors extend only a small distance, just 30 millimeters – roughly 1 inch – in the case of Zipwake interceptors.
For example, a Zipwake interceptor that is 12” wide will have a blade that measures 12” x 1” and a trim tab that’s 12” wide will typically measure 12” x 9” or 12” x 12”.
Because of that size, trim tabs can foul lines in the water and easily be damaged against pilings or docks. As a result, the lower-profile interceptors are often preferred by fishing, lobster, pilot, and other commercial boats.
Bow rise occurs initially because most boats are heavier in the stern and lighter in the bow, and as a boat accelerates, the bow lifts up and the stern sinks, pushing a wall of water in front of it. As the boat accelerates, the engine must drive the boat uphill to get “over the hump” and onto a plane. Both interceptors and trim tabs assist the engine by creating upward pressure at the stern, reducing the steepness of the hill the boat must climb and helping it level out faster. While both can work well, where they differ is in their reaction time and efficiency in creating lift without lots of drag at the same time.
Efficiency
The main advantage of an interceptor system is the smaller blade and the speed at which it can deploy and retract. Zipwake interceptors move from fully retracted to fully extended in 1.5 seconds. That’s four to five times faster than trim tabs, which typically take 6 to 8 seconds. That means as you leave the harbor and accelerate up to cruising speed, your boat will get “out of the hole” and onto a plane significantly faster with interceptors.
That speed also comes into play with automatic roll control. If a boat is planing but listing perceptibly due to sea state or cargo, some interceptors and trim tabs can be used to manually counteract the list or roll. With a Zipwake system, a gyro sensor in the control head can balance the boat automatically when planing, by extending or retracting the port or starboard units separately, as needed.
Given that an interceptor retracts and deploys faster than a tim tab, and a small increment of interceptor will generate a large amount of lift, the system can react quickly enough to offset the varying period of different sizes and shapes of waves. While some trim-tab systems attempt to automatically control roll as well; tests conducted by Imtra showed that the trim-tab roll-control systems may work in a long swell but simply can’t keep up in a shorter, steeper chop.
As illustrated in the video, the smaller blade of the interceptor also creates less drag than a conventional tab, improving speed and fuel efficiency.
Sensitivity & Control
Interceptors travel relatively small distances and can be adjusted in fine increments. For example, a Zipwake unit has a stroke distance of only 30mm and can be adjusted within that range by 0.5mm at a time, allowing the boat to be balanced in a fine-tuned manner. There is a physical gauge within the control-panel wheel that allows you to gauge each increment.
By comparison, trim tabs generally move at one speed, and cannot be customized to fit the specific pitch & roll needs of each different hull shape.
Robustness
The geometry of trim tabs allows uneven distribution of force which could lead to the warping of plates and reduce onboard stability. Interceptors, on the other hand, are resilient in harsher conditions such as barnacle growth and hits and bumps from objects you may run into in the open sea. Trim tabs also make it harder to control the boat when backing up and are vulnerable to breaking, making interceptors the ideal choice for boat owners looking for reliability, dependability, and durability.
Boat Speed
Because of the small blades, interceptor systems require strong waterflow to be effective. As a result, one of the main disadvantages to the interceptor system is that it does not perform well on slower boats. A heavy trawler that cruises at 8-10 mph does not provide enough waterflow over the interceptor blades for them to create lift. For a boat like this, trim tabs with a larger surface area are going to be a more effective system for trimming the hull.
At the other end of the spectrum, most interceptor blades can be damaged at speeds greater than 60mph, because the force on the blade perpendicular to the waterflow becomes too strong. Because tabs deploy at a very shallow angle at first, they can still be used at high speeds. That being said, there is very little need, if at all, for trim control on a boat that is already traveling 60 mph or more.
Cost to Install
The install processes for trim tabs and interceptor systems are essentially the same, so the cost of the installation generally is similar as well. Both require mounting the tab or interceptor to the transom, mounting a control at the dash, and snaking cable to connect the two. That means the labor and materials cost of the install will be near identical.
The pricing of the actual equipment varies vastly, but typically an interceptor system is going to cost more. See a comparison below for Zipwake interceptor systems and Bennett trim tabs with the automatic control function added.
A pair of 12” x 12” Bennett BOLT electric trim tabs has a list price of $999.00, and the added AutoTrim Pro for automatic control lists for $660.00, bringing the total cost of the equipment to $1,659.00.
A comparable interceptor system from Zipwake, the 300S kit, lists for $3,160.00, and comes with everything needed for the system.
Of course, all of these items are available for less than the manufacturer printed list price, so always be sure to get a quote from your dealer or installer.
If you’re interested in a Zipwake system, contact your local dealer for a quote to get started! Or, reach out to us today to speak with a member of our team.
