Beclawat Marine Windows

Who is Beclawat?

Since 1912, Beclawat Manufacturing Inc. has been known for their top-quality innovative designs and production of complete window solutions serving the evolving needs of marine, rail, transit, and defense industries. They manufacture products with numerous glazing and finish options including, but not limited to monolithic tempered chemically strengthened, heated, and ballistic glazing options. They have the ability and experience to design and manufacture products to BV, Lloyd’s, and ABS standards, among other classifications.

Resources

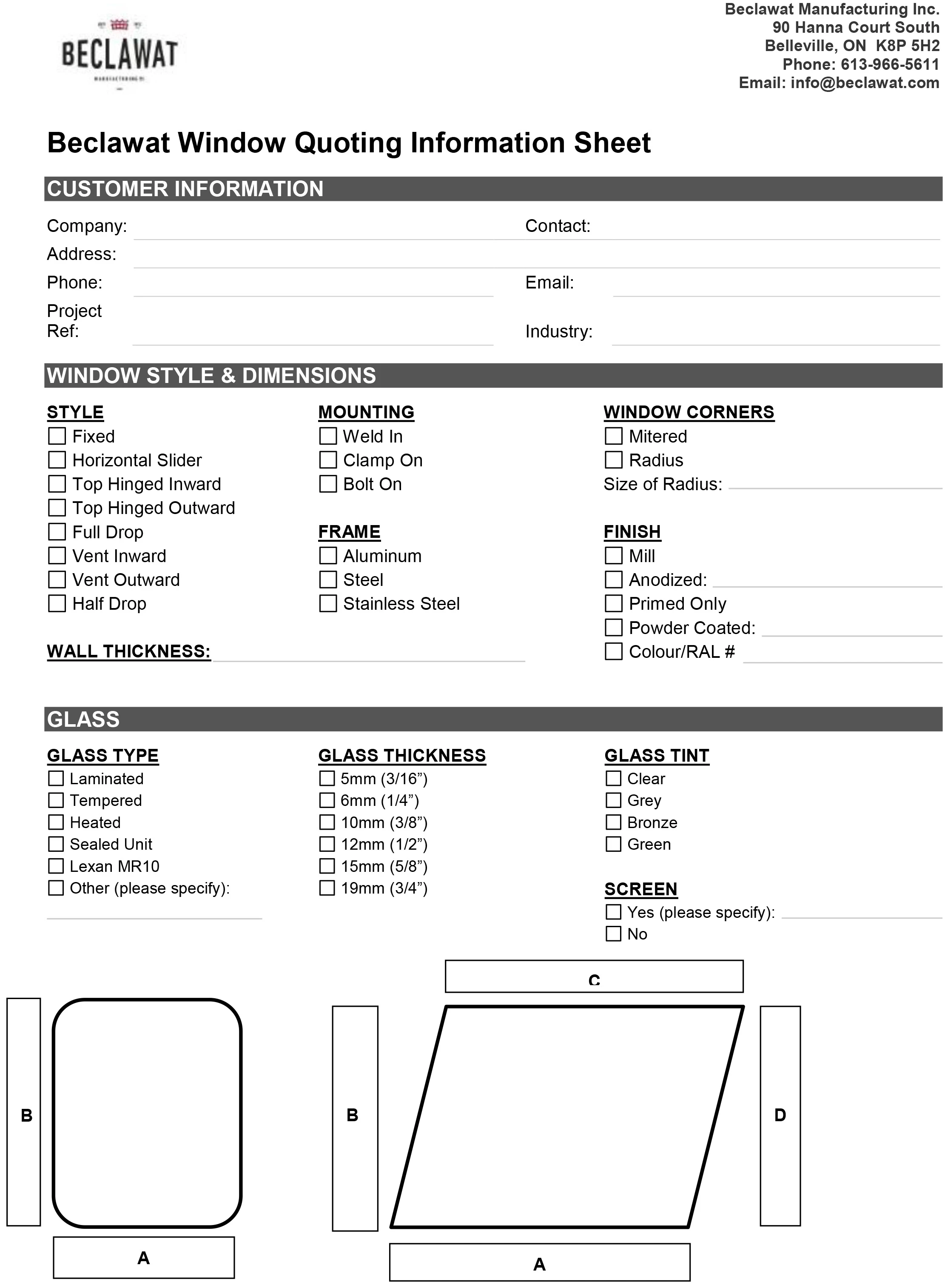

Window Questionnaire

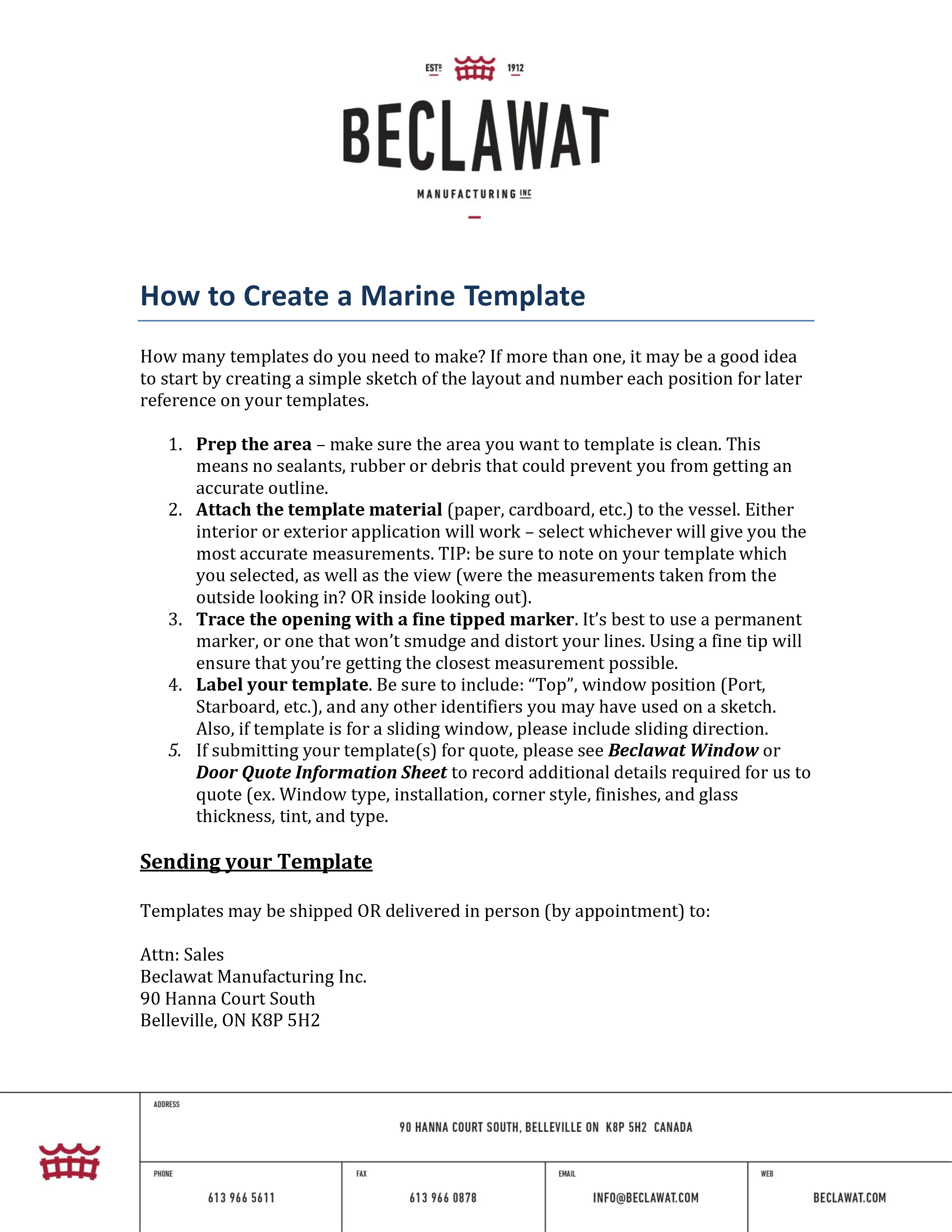

How to Create a Window Template

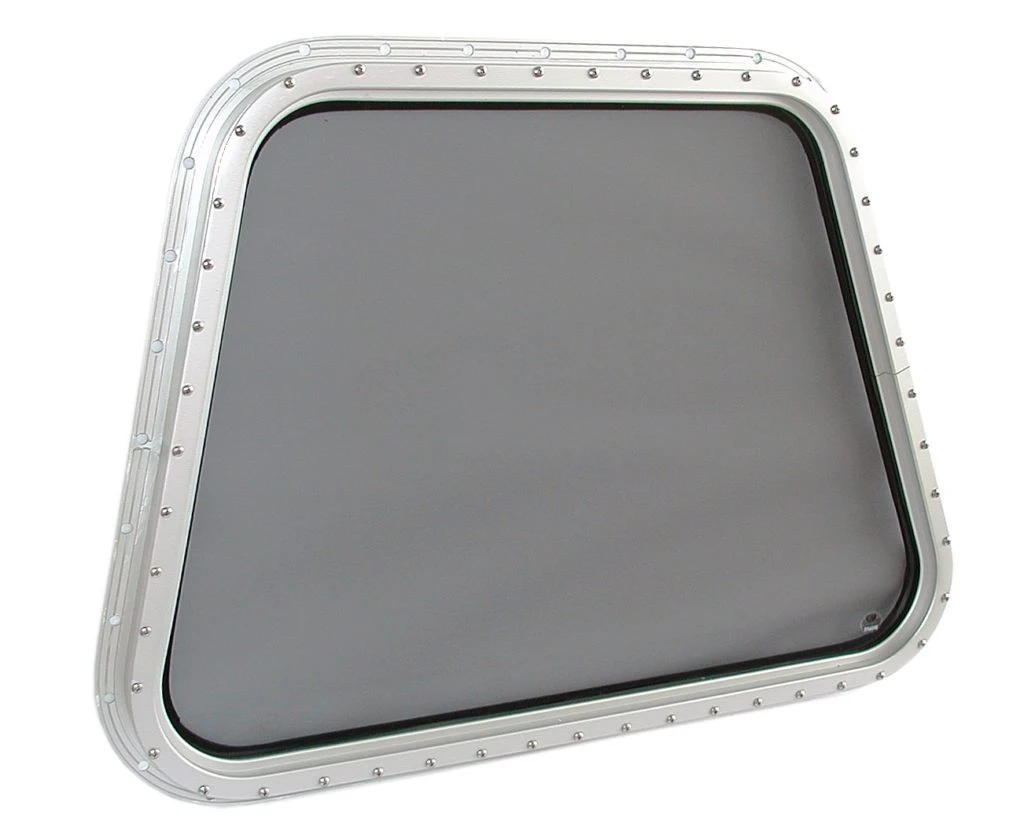

Heavy-Duty Aluminum Bolt-On Fixed Window

Heavy-duty marine-grade aluminum fixed frame Bolt-On installation Frame supplied with standard 11/32″ flange mounting holes (unless otherwise requested) Suits glass thicknesses 10mm to 19mm (3/8″ – 3/4″) Numerous glazing options, including heated glass, and insulated/sealed units Finishes Include: Mill, Clear or

Medium-Duty Hinged-Out Operating Window

Use where heavier glass is required Clamp-On installation Suits glass thicknesses of 10mm (3/8″) or 12mm (1/2″) Operates with white bronze cam locks and stainless steel hold opens Finishes: Clear or Black Anodized, White or Black Powdercoat, or Custom Paint

Heavy-Duty Aluminum Bolt-On Window

Beclawat’s most versatile window designs. For use in heavy-duty or extreme weather applications Select either Bolt-On, Clamp-On, or Clip-On installation designs Flexible design allows for fixed, vertical or horizontal sliding styles Marine grade aluminum Available with radius or mitered corners Glazed with 10mm or 15mm glass Heated

Manufacturing Capabilities

Glass Products	Materials & Finishes	Design & Manufacturing
Meets ANSI Z26.1	Aluminum	Custom Design
Heated	Steel	3D CAD modeling
Tempered	Stainless	In-house CNC capabilities
Laminated	Powder Coating	MIG & TIG Welding
Tinted	Anodizing	Bending Heavy/Light Duty Materials
Fritted Bonded-In	Paint
Curved	Mill Finish
Insulated Glass Units

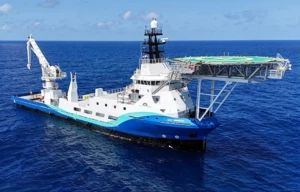

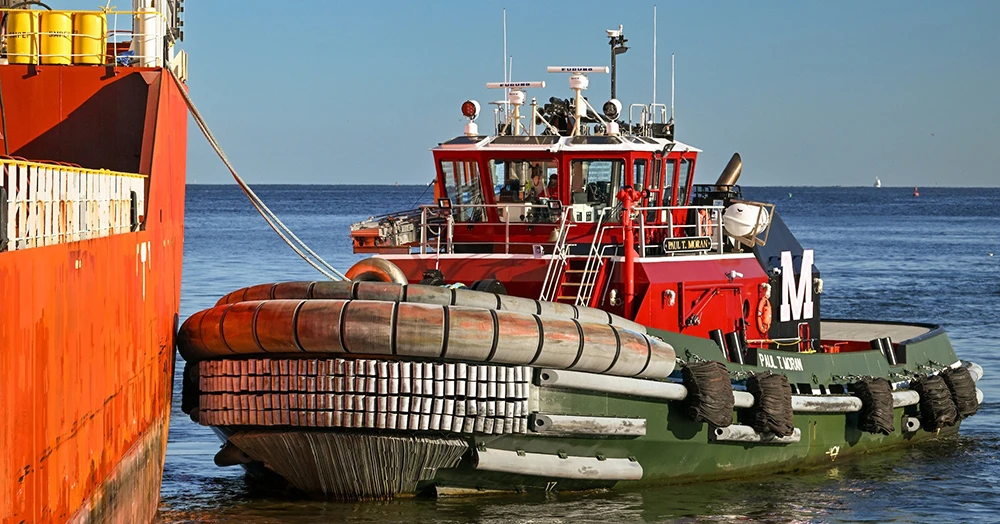

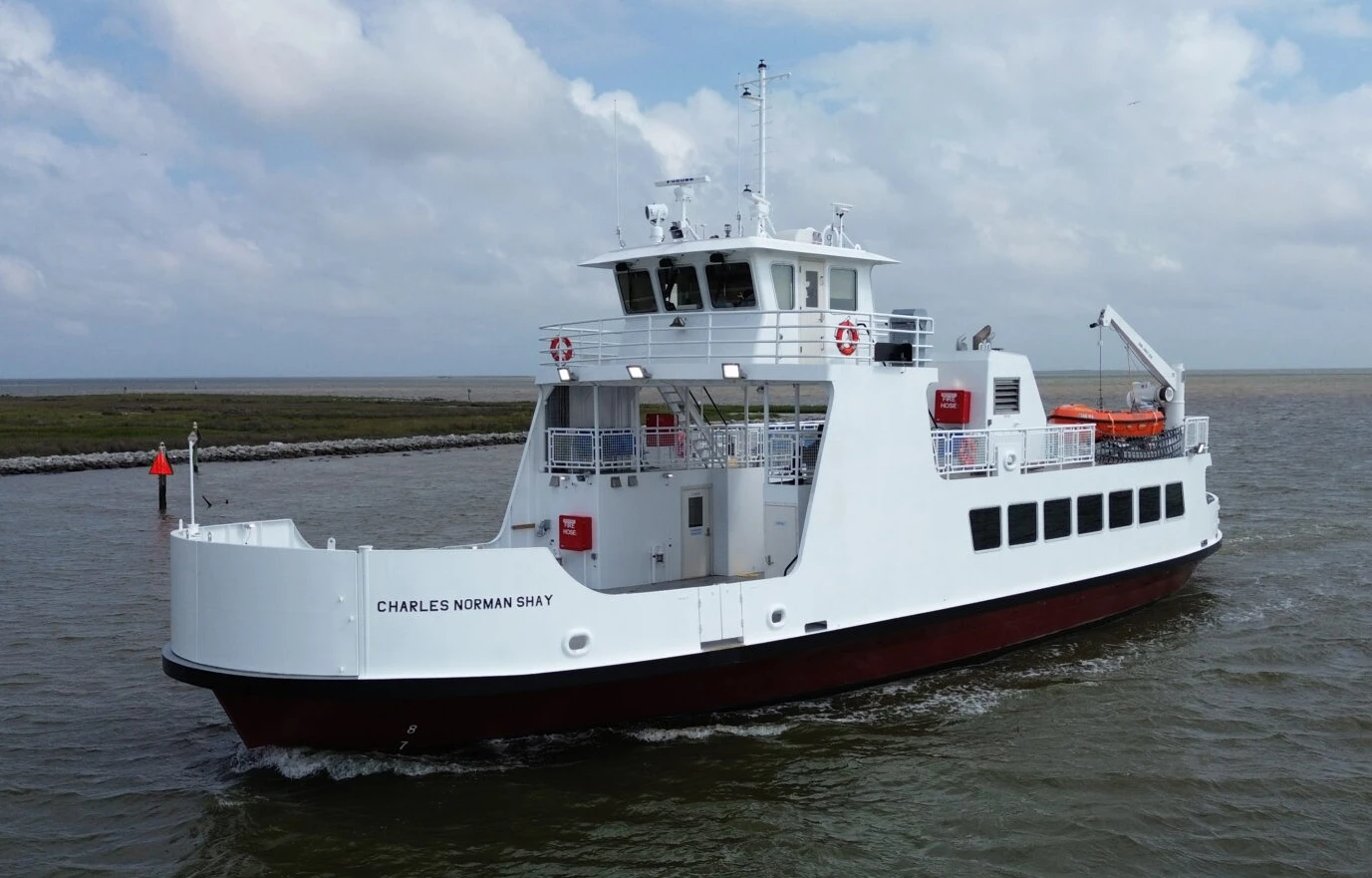

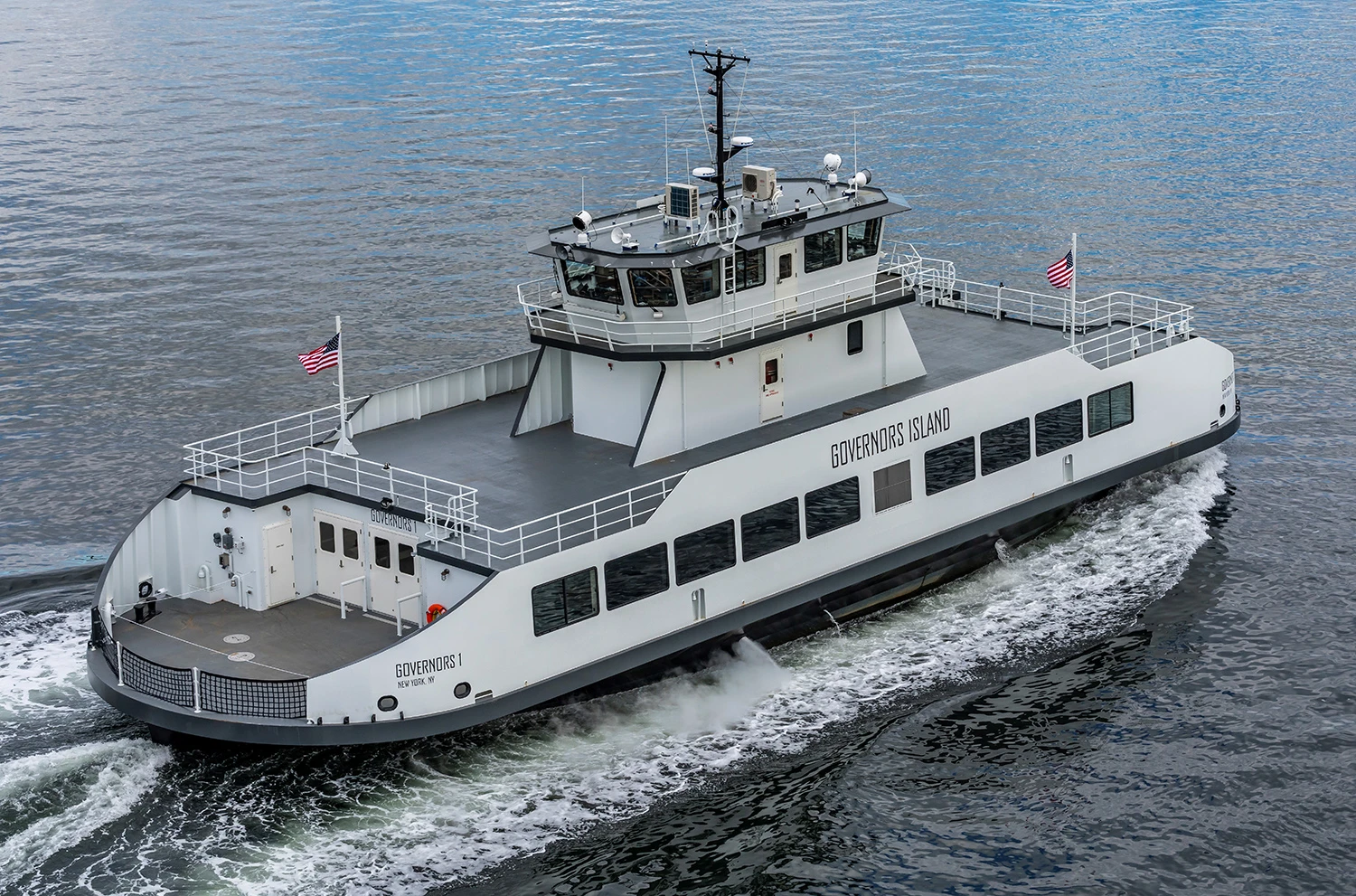

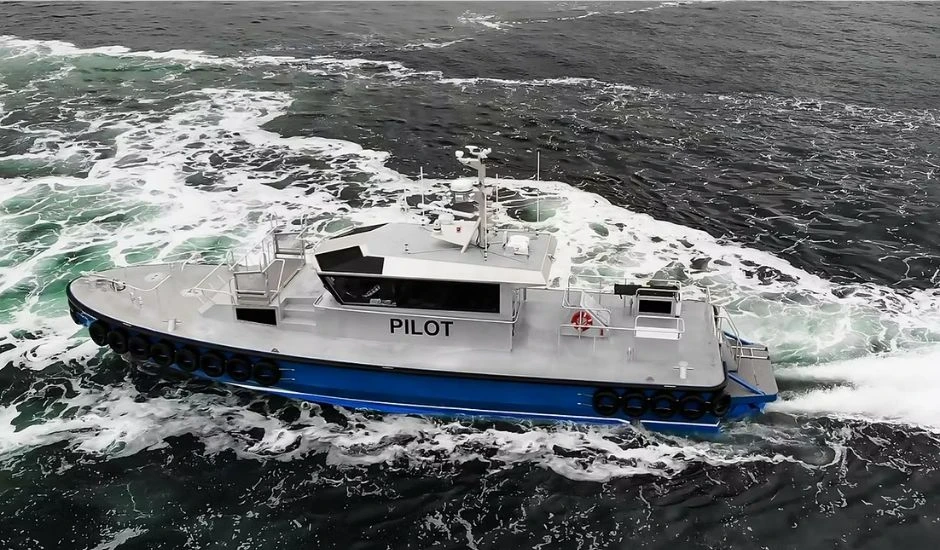

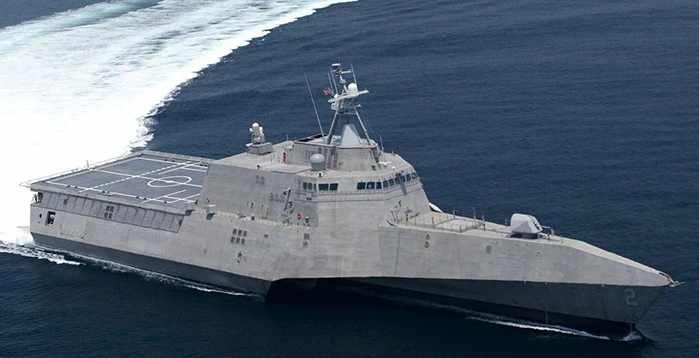

Beclawat Window Installations
